Guided quality control
for manual measuring equipment
With D3D - GaugingWeb, your employees can check and measure components easily and without special PolyWorks® training, even without in-depth knowledge of PolyWorks. The browser-based solution guides users step-by-step through the inspection process so that anomalies in component quality can be precisely recorded and checked using manual measuring equipment. This allows you to maintain full control in production at all times - simply, quickly, cost-effectively and without complex IT.

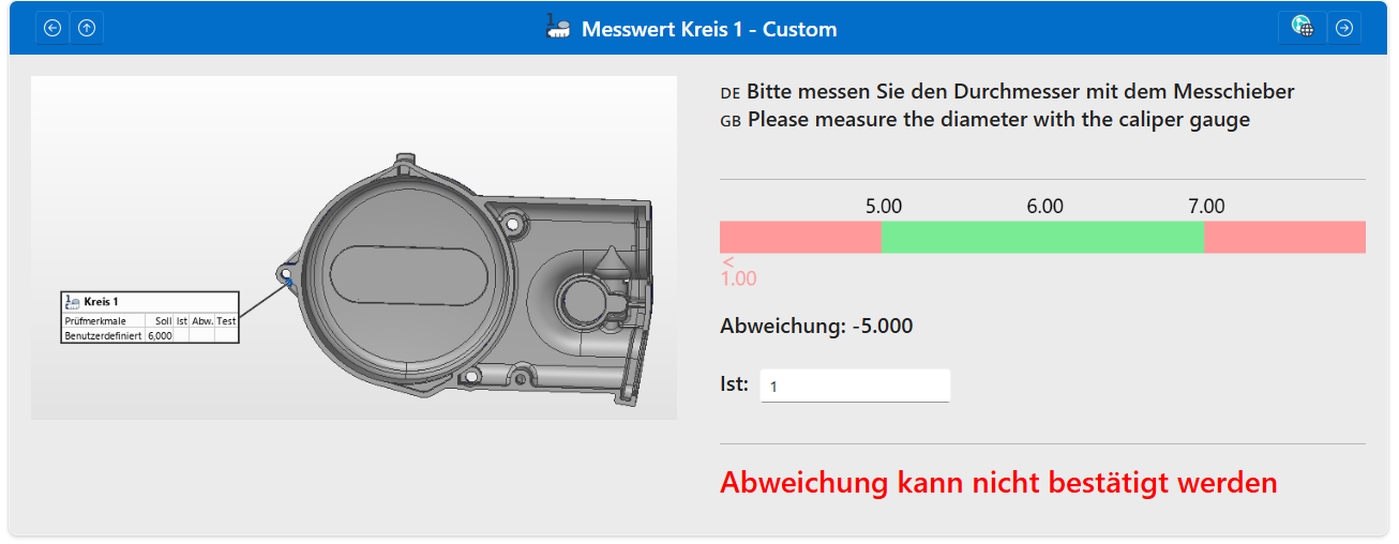

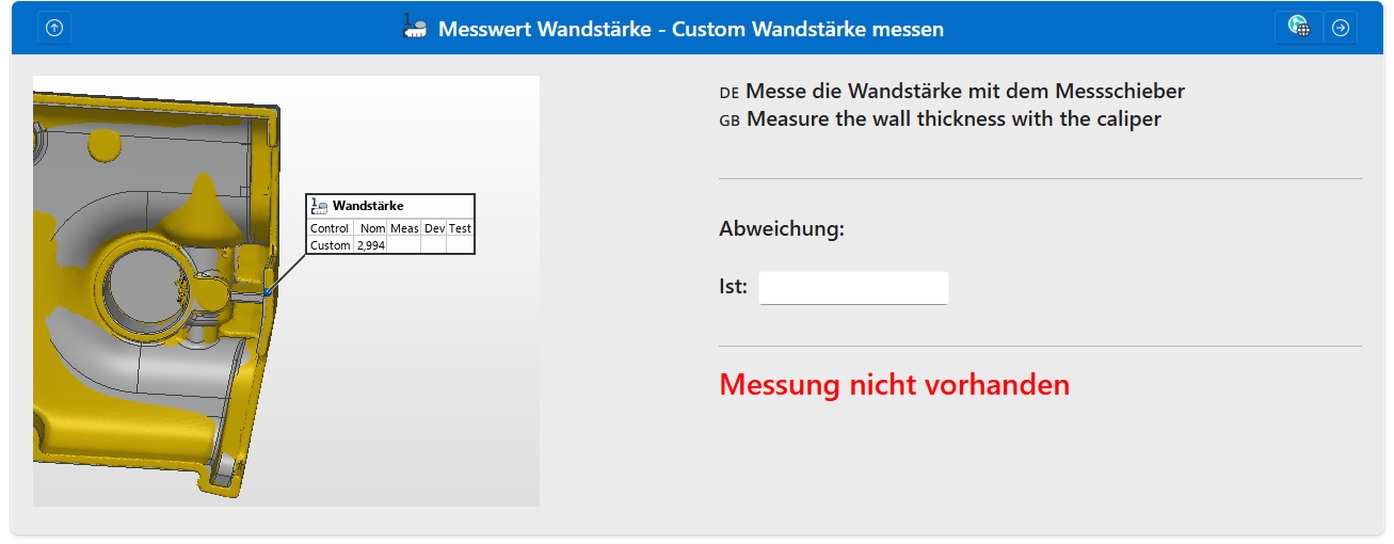

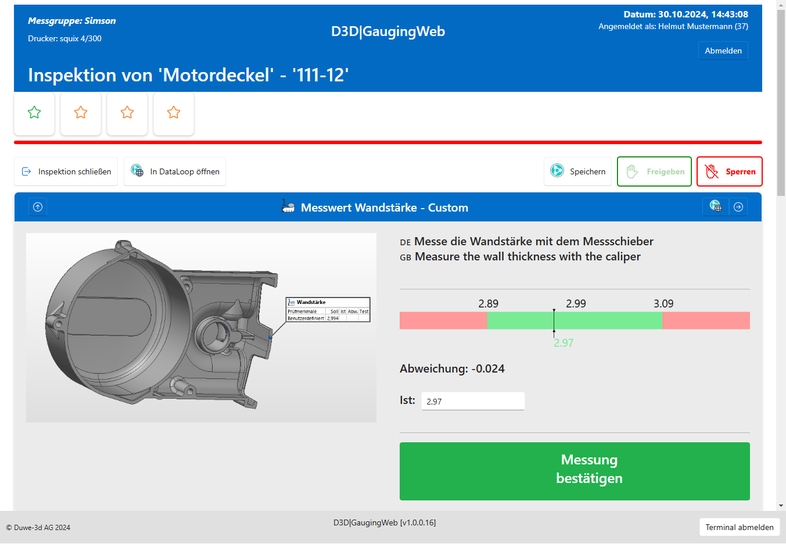

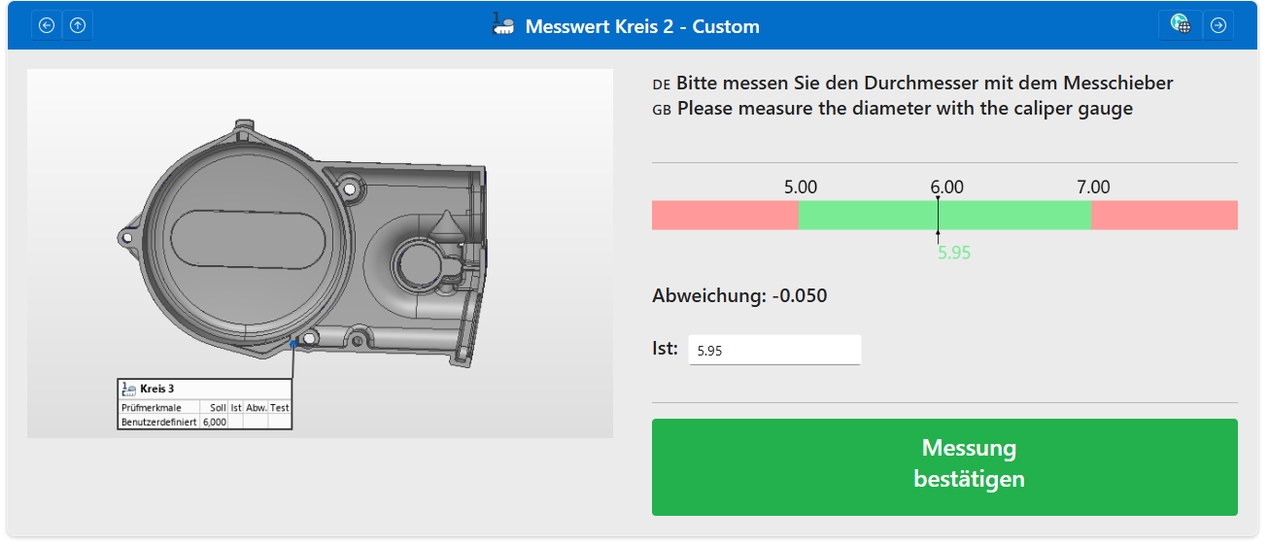

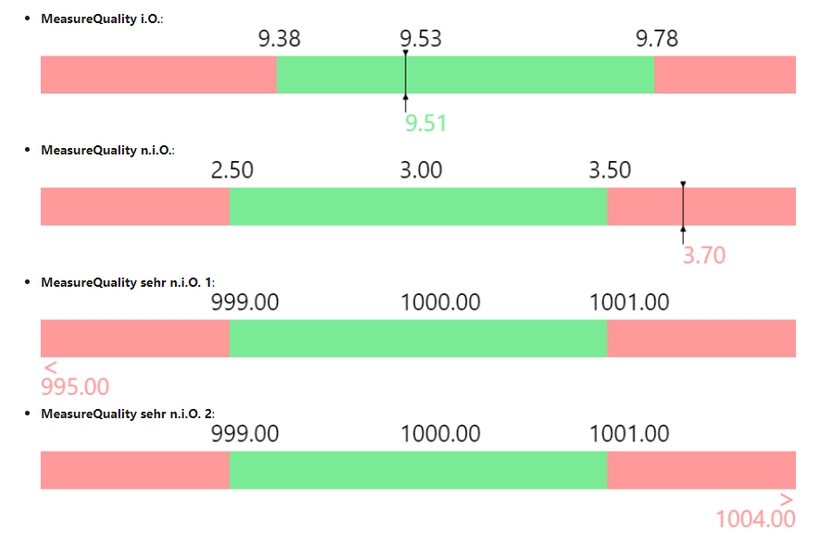

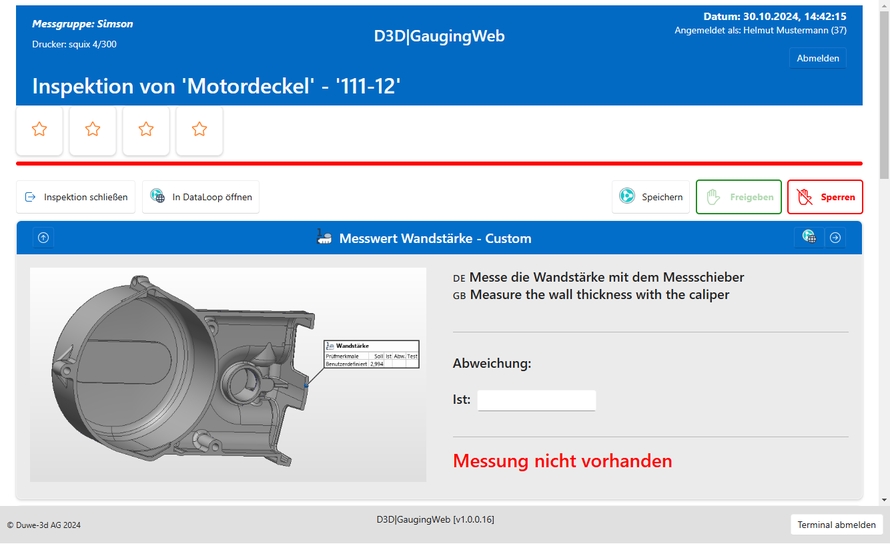

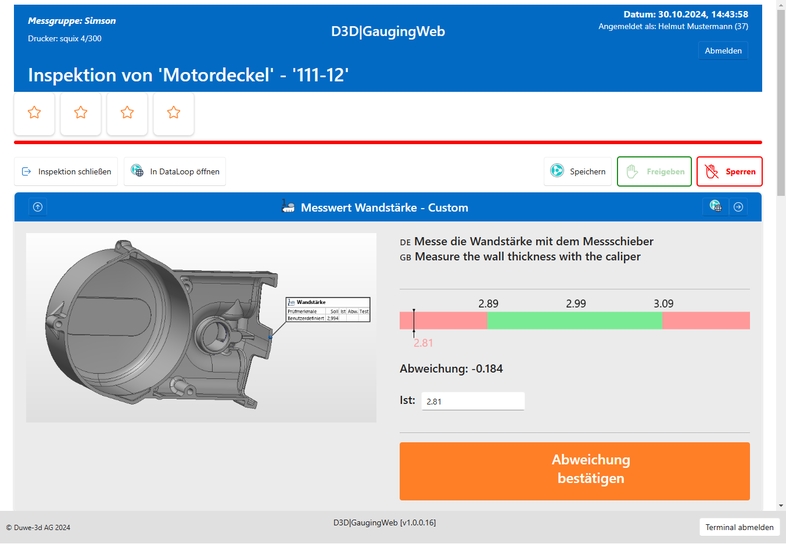

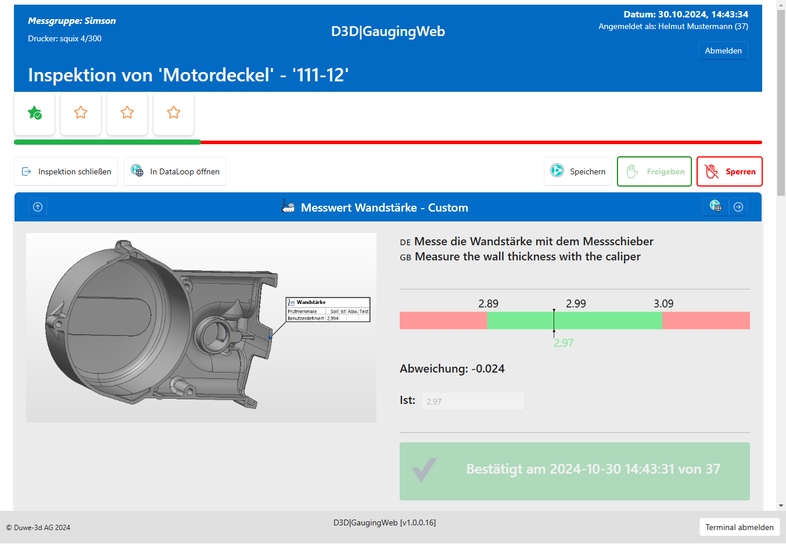

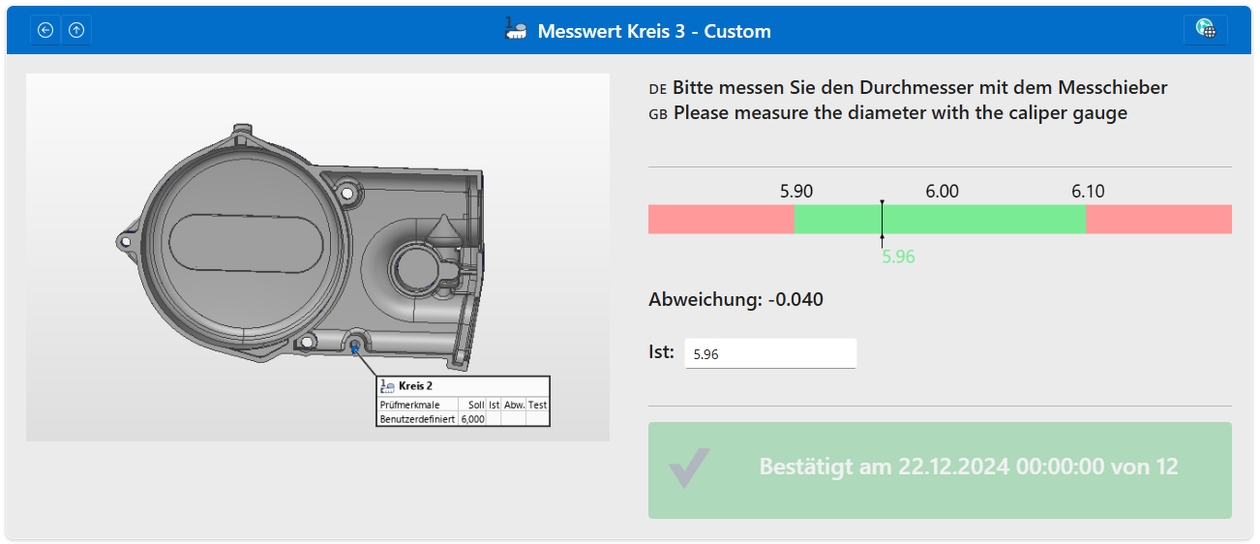

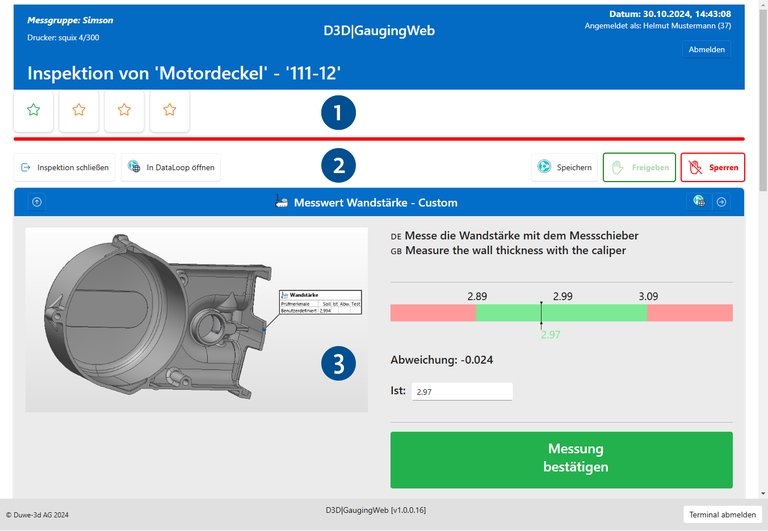

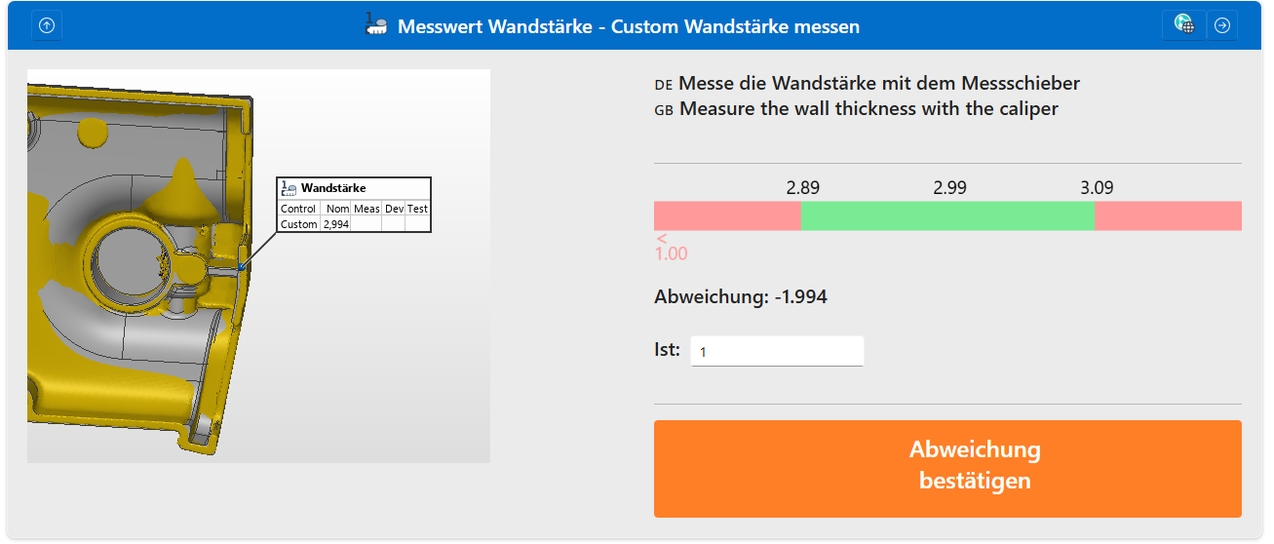

The user-friendly, clearly structured interface enables simple operation directly in the browser and is aimed at both production employees and measurement technicians. Visual markings and intuitive graphics ensure that deviations can be recognized at a glance. Based on the manual measuring equipment used, decisions can be made immediately as to whether the component needs to be corrected or whether the part still meets the quality standards despite minor deviations.
D3D - GaugingWeb is suitable for the following applications
Manual measurement and testing of parts.
Worker self-inspection, in which employees independently check the quality of their work. This also includes deviation analysis in order to identify target/actual differences at an early stage and initiate corrective measures.
A final approval process ensures that all quality requirements are met.
The D3D - GaugingWeb application is also ideal as a downstream quality inspection for automated measuring cells or CNC coordinate measuring machines (CNC CMM) and enables comprehensive quality control along the entire production chain.

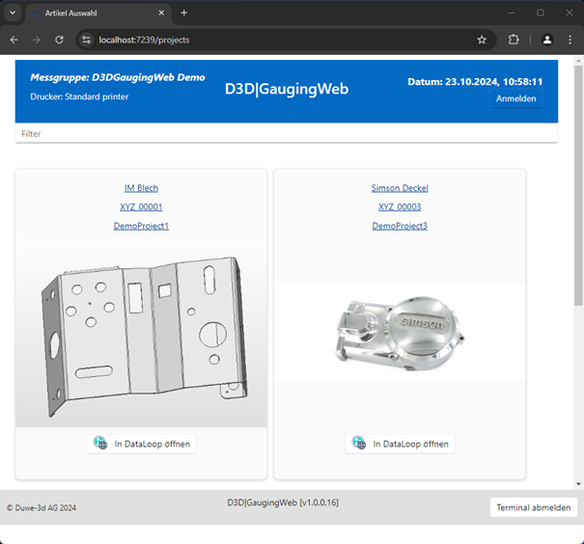

D3D - GaugingWeb is the ideal browser-based solution for your production environment. Unlike computing-intensive desktop applications, it does not require costly high-performance computers or complex IT infrastructure. Instead, the application can be used flexibly and directly on inexpensive, robust tablets in the production environment, where they are reliably protected from dust and dirt. There is no need for local installation - operation is secure and fast in the browser. In the event of a device failure, a replacement device can be set up easily.

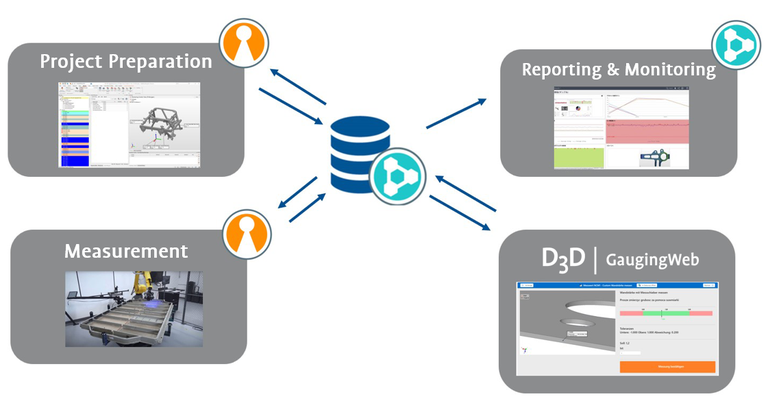

Seamless data transfer between PolyWorks|Inspector™, PolyWorks|DataLoop™ and D3D - GaugingWeb via hyperlinks guarantees an undisturbed flow of information and efficient quality control without additional hurdles.
